How to Splice Spectra and Dyneema Shooting Line: A Complete Guide for Divers

Your shooting line is the single thread connecting you to the fish of a lifetime. When a 60-pound yellowtail turns sideways and pulls, or when a bluewater tuna decides it wants to sound, the one thing keeping you in the fight is the connection between your shaft, your line, and your float. That connection is only as strong as its weakest termination, and for most divers, that weakest point is a knot.

Learning to splice Spectra and Dyneema is one of the highest-leverage skills in the sport. A proper splice preserves roughly 95 to 100 percent of the rated breaking strength of the line. A knot, by contrast, typically destroys 30 to 40 percent of that strength. On a 600-pound-rated Dyneema setup, that is the difference between 600 pounds of real holding power and about 360 pounds. When a big fish lights up your spool, you want every pound the manufacturer printed on the label.

This guide covers why splicing matters, the tools you need, the three main splice types used in spearfishing rigs, practical setups for shooting line, slip tip cable, and float line terminations, the most common mistakes that sink an otherwise solid splice, and where to get the gear and practice material to build the skill without risking a real rig.

Why Splicing Matters (and Why Knots Lose)

Spectra and Dyneema are ultra-high-molecular-weight polyethylene fibers (UHMWPE). They are stronger than steel by weight, nearly zero-stretch, and incredibly slippery. That last property is the problem. Because the fibers are so slick, knots are prone to slipping under load and concentrating stress on a few strands at the knot entry. That localized stress is where failure starts.

A splice works differently. Hollow-braid Spectra and Dyneema are constructed as a tubular weave. When you bury one tail inside the hollow center of the other, the weave constricts under load like a Chinese finger trap. The harder you pull, the tighter the bury grips. Load is distributed across the entire braid rather than pinched at a knot. The result is a termination that retains almost all of the rope's rated strength.

This matters in spearfishing because loads can spike far above a fish's weight. A powerful hit on a heavy band gun, a fish wrapping the line around structure, a float getting slammed by a boat wake while a fish runs, all of these events put shock loads on the weakest point in the system. Splicing moves that weakest point away from your termination and back into the middle of the line, where it belongs.

Essential Tools for Splicing

You do not need a shop full of gear to splice well, but using the right tools is the difference between a clean splice and a frustrating hour of picking at loose strands. Here is what you want on the bench before you start.

Hollow fid set. A fid is a tapered tube that slides inside the hollow weave so you can pull the tail through. Samson, D-Splicer, and Brion Toss all make fid sets sized for common line diameters from 1.5 mm up to 10 mm and larger. Match fid size to your line. Using a fid that is too fat stretches the braid; too skinny and the tail catches and bunches.

Splicing needle (also called a pulling needle or wire fid). For smaller-diameter shooting lines, a wire needle with a collapsible eye is often easier than a rigid fid. These let you thread the tail, pinch the eye shut, and pull through any length of bury without fighting friction.

Measuring tape or ruler. Burial length is measured, not eyeballed. Eight to ten centimeters of error on a short bury can cost you 20 percent of your splice strength. Keep a metric tape close.

Fine-tip permanent marker. You will mark several reference points on the line: where the bury begins, where the tail exits, and where the taper starts. A fine tip keeps marks accurate on small-diameter braid.

Sharp knife or serrated scissors. Dyneema dulls blades fast. A fresh razor blade or dedicated line scissors make a cleaner cut than an old pocket knife and prevent fraying at the tail.

Optional but useful: a splicing board or clamp to hold the standing line steady, a lighter to lightly melt stray tail fibers after taper, and thimbles or quick-links if you are splicing to hardware.

1. The Bury Splice (Eye Splice)

This is the most common splice in spearfishing and the one you should master first. It creates a permanent loop at the end of the line, ideal for attaching to a shaft, a thimble, a swivel, or a quick-link.

The rule of thumb for burial length is 80 to 100 times the line diameter. For 2 mm Dyneema, that is 16 to 20 cm of bury. Shorter burials do not grip enough; longer burials are not harmful for strength but add bulk and stiffness.

Step 1: Measure and mark. From the working end of the line, measure back the burial length plus the eye size (the loop size you want). Mark Point A where the eye begins, and Point B where the burial ends. Make a third mark at the tip so you know where the tail is.

Step 2: Open the weave. At Point A, gently spread the hollow braid open with your fingers or the tip of a fid. You are creating an entry point for the tail to slide inside the rope.

Step 3: Thread the fid. Attach the tail of the line to the fid or pulling needle. Insert the fid through the opening at Point A, slide it inside the hollow center of the rope, and push it along until it exits at Point B.

Step 4: Pull the tail through. Pull the tail out at Point B, then continue pulling until the eye (the loop between Points A and B of the standing line) closes down to the size you want. The tail should now be fully buried inside the hollow braid between A and B.

Step 5: Taper the tail. Before you lock the splice, cut the tail at an angle or whittle it down in stages (cutting off one-third, then another third, at staggered lengths). The taper prevents a hard step inside the braid that would create a stress point.

Step 6: Milk and lock. Hold the eye in one hand and run your fingers down the standing line toward the bury, smoothing the weave from the tail end back toward the throat of the splice. This milks the braid tight around the bury. Put a test load on the line; the weave will grip and lock the tail in place. The splice is finished.

2. The Brummel Lock Splice

The Brummel is the most secure splice in hollow braid. It adds a mechanical lock before the bury, so that even if the bury were to fail or the weave were to loosen under repeated loading, the line physically cannot pull apart. Divers use it where failure is unacceptable: slip tip cables, bluewater shooting lines for tuna or wahoo, and any connection exposed to repeated shock loads.

The core idea: two sections of line pass through each other, forming an interlocked loop. Then the tail is buried back inside the standing part just like a regular bury splice. The lock is what makes it a Brummel; the bury is what gives it strength.

Step 1: Mark two points on the line. Point A is where the eye begins (closest to the working end), and Point B is further up the standing line at a distance equal to your bury length. Mark the tail about the same bury length past Point A.

Step 2: First pass. Open the weave at Point B and push the entire tail of the line through the hollow center, pulling it back out through the same opening. You now have a loop with the tail sticking out of Point B.

Step 3: Second pass (the lock). Now open the weave at Point A on the tail itself, and push the standing line through that opening. When you pull tight, the two sections of rope pass through each other, forming a Brummel lock. This lock is the key feature, it cannot come undone without cutting the rope.

Step 4: Bury the tail. With the lock formed, use a fid to bury the remaining tail back inside the standing line, just like a standard bury splice. Taper the end before locking it in place.

Step 5: Milk the splice. Smooth the braid back toward the eye to tighten everything, and load-test before trusting it on the water. A properly executed Brummel lock is the gold standard for critical connections.

3. The Long Bury with Tail Lock

For heavy-load applications like tuna rigs, a standard bury can be upgraded with a longer bury length and a carefully tapered tail. This is what professional riggers use when breaking strength has to be maximized and smoothness through guides or over a float line matters.

Step 1: Extend the burial to 120 to 150 times line diameter instead of the standard 80 to 100. For 3 mm line, that is a bury of 36 to 45 cm. The extra length spreads the load over a longer section of rope.

Step 2: Taper the tail aggressively. Rather than a single angled cut, taper the last 10 to 15 cm of the tail in three stages. Cut away roughly one-third of the fibers at the first stage, one-third more at the second, and trim the very tip to a fine wisp at the third stage. This creates a gradient from full thickness down to nothing, eliminating any sharp step inside the braid.

Step 3: Optional tail lock. For extreme applications, put a tiny whip-stitch or a single stitch of waxed thread at the throat of the splice, passing through both the standing line and the buried tail. This physically secures the tail against any walking-out under cyclic loading. It is overkill for most shooting lines but standard practice on heavy offshore rigs.

Step 4: Milk and test. As with the other splices, smooth the weave from the tail toward the throat, then apply a hard test load. A long bury with a tapered tail is one of the smoothest, strongest, quietest splices you can build.

Practical Setups for Spearfishing Rigs

Shooting Line to Shaft

The connection from shooting line to shaft takes constant abrasion against the shark fin tab or wishbone notch. Use an eye splice with a stainless steel thimble inside the eye. The thimble protects the line from the metal edges of the shaft and dramatically extends line life. A standard bury splice is sufficient here; a thimble-protected eye splice will outlast the rest of the rig.

Shooting Line to Slip Tip Cable

This is where the Brummel lock earns its reputation. A slip tip is your last line of defense on a big fish, and the junction between your Dyneema shooting line and the cable leading to the slip tip is the single most loaded connection in the entire system. Use a Brummel lock splice here, not a knot and not a basic bury. Many divers also use a small thimble or crimped loop to take the abrasion off the cable side. The extra five minutes it takes to build a Brummel is insurance for every bluewater dive you make after. This is especially true when chasing bluefin tuna or other large pelagic fish where shock loads can peak well beyond the fish's static weight.

Float Line Terminations

Float lines terminate at both ends: gun end and float end. For both, a standard eye splice around a quick-link or heavy swivel is the go-to. The quick-link makes it easy to swap guns or floats in the field, and the splice holds full rated strength. Avoid snap clips that can open under load. If you run a bungee-assisted float line, the same splicing principles apply, just make sure your splice is in the Dyneema core, not in the stretchy outer cover.

Common Splicing Mistakes

Burial too short. Anything under about 60 times line diameter will not develop enough grip and will slowly pull out under cyclic loading. When in doubt, go longer rather than shorter.

Burial too long. A bury significantly over 100 times diameter does not add strength and creates a stiff spot that does not feed smoothly through guides or over the float line. The splice also becomes harder to inspect. Match the bury to the line.

Forgetting to taper the tail. A blunt tail end inside the weave creates a sharp step where load transitions from the buried tail to the standing line alone. That step is a stress concentrator and a common failure point. Always taper.

Wrong fid size. A fid that is too large for the line diameter will splay the weave and leave the bury loose; a fid that is too small gets caught and you end up tearing strands. Buy a matched fid set or at minimum check the sizing chart on the fid manufacturer's site before you start.

Splicing coated line. Some Dyneema products come with a polyurethane or silicone coating for stiffness or UV protection. Coatings interfere with the finger-trap grip of the bury. Either use uncoated line for any section you plan to splice, or be prepared for a weaker termination. Read the product spec before you buy a spool.

Skipping the load test. Every finished splice should see a test load before it sees a fish. Tie off the eye, put your full body weight on the standing line, bounce it, and watch the splice. If it walks, milk it back and re-seat the tail. If it walks again, cut it off and redo the splice. A splice that holds a hard yank on the bench will hold a fish.

Breaking Strength Math: Why It Pays to Splice

Here is the math every diver should run before finalizing a rig. An unspliced knot termination on Dyneema retains roughly 60 percent of the rated breaking strength of the line. That number varies by knot, but even the best knots on slick UHMWPE fibers rarely exceed 65 to 70 percent. A properly executed bury splice retains 95 to 100 percent.

Apply that to a real-world rig. Take 600-pound rated Dyneema, a common shooting line size for bluewater work. Knotted, you are actually fishing about 360 pounds of holding power. Spliced, you are fishing the full 600. That is a 67 percent increase in your effective breaking strength, for free, using the same spool of line.

Same math scales across any line weight. A 400-pound line knotted is a 240-pound line in practice. Spliced, it holds its rating. A 1000-pound bluewater main line knotted is only 600 pounds of actual holding power. Spliced, the full 1000 pounds is available. On a fish that is already stretching your gear to its limit, that margin is often the difference between a clean pull and a cut line.

Tools and Sources

Fids and splicing needles. Samson Rope's website sells a full range of fids sized for their products; their sizing chart is a handy reference even if you buy elsewhere. D-Splicer makes excellent wire fid sets popular with riggers. Neptonics stocks fids alongside other spearfishing rigging supplies and is a one-stop shop if you also need Dyneema, thimbles, and quick-links. Local chandleries and offshore fishing tackle shops often carry fids as well.

Practice material. Do not learn on your real shooting line. Order a spool of cheap 100-pound or 200-pound hollow Dyneema (often sold as kite line or cheap utility cord) and spend an evening building, inspecting, and deliberately failing splices. Cut them apart, feel how the bury grips, try different bury lengths, and test the limits. Two hours of practice on $15 of line will teach you more than any article, and by the end you will build splices on the real stuff without hesitation.

Inspection schedule. Splices last, but they do not last forever. Inspect every splice in your rig at the start of each season and after any big fish. Look for fuzz at the throat (normal), broken strands at the bury entry (replace), stiffness suggesting embedded salt or corrosion (rinse and evaluate), and any sign of walking or loosening (redo). Treat your terminations like you treat your bands and line shafts: they are consumables, and the time to replace them is before they let you down. Pair inspection with routine speargun maintenance so your whole rig stays ready.

The Bottom Line

Splicing Spectra and Dyneema is one of the few skills in spearfishing where a weekend of practice delivers a permanent, measurable upgrade to your gear. Your shooting line becomes stronger. Your slip tip rig becomes more secure. Your float line terminations stop being the weak point that costs you fish. The techniques are not complicated; they just require attention to burial length, tail taper, and a patient hand on the milking step. Build a practice spool, run your drills, and the next time a big fish lights you up you will have the full rated strength of your rig working for you.

Check Conditions Before You Go

Check current visibility, water temperature, and fish activity predictions at your dive spot using the SpearFactor Fish & Dive Conditions Tool.

Freediving and spearfishing carry real risk. Never dive alone, train with a qualified instructor, and review best practices at freedivingsafety.com.

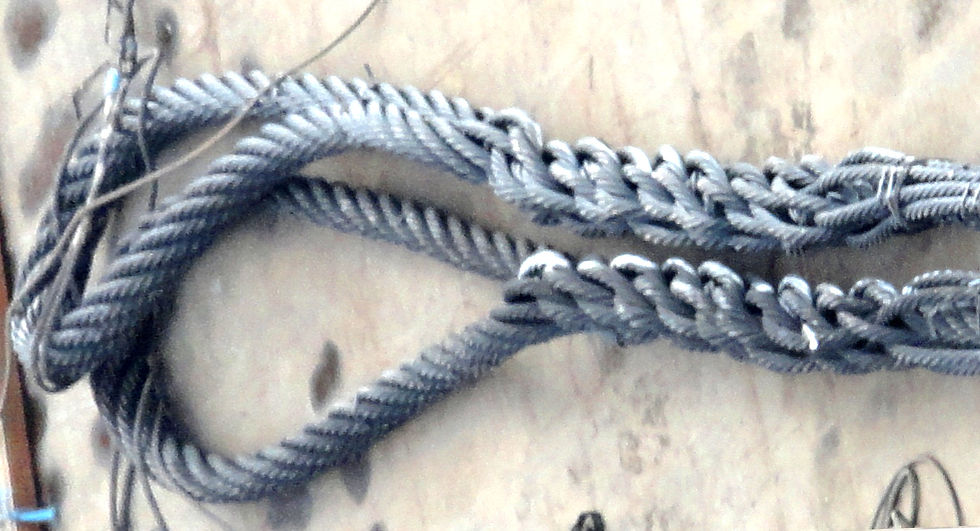

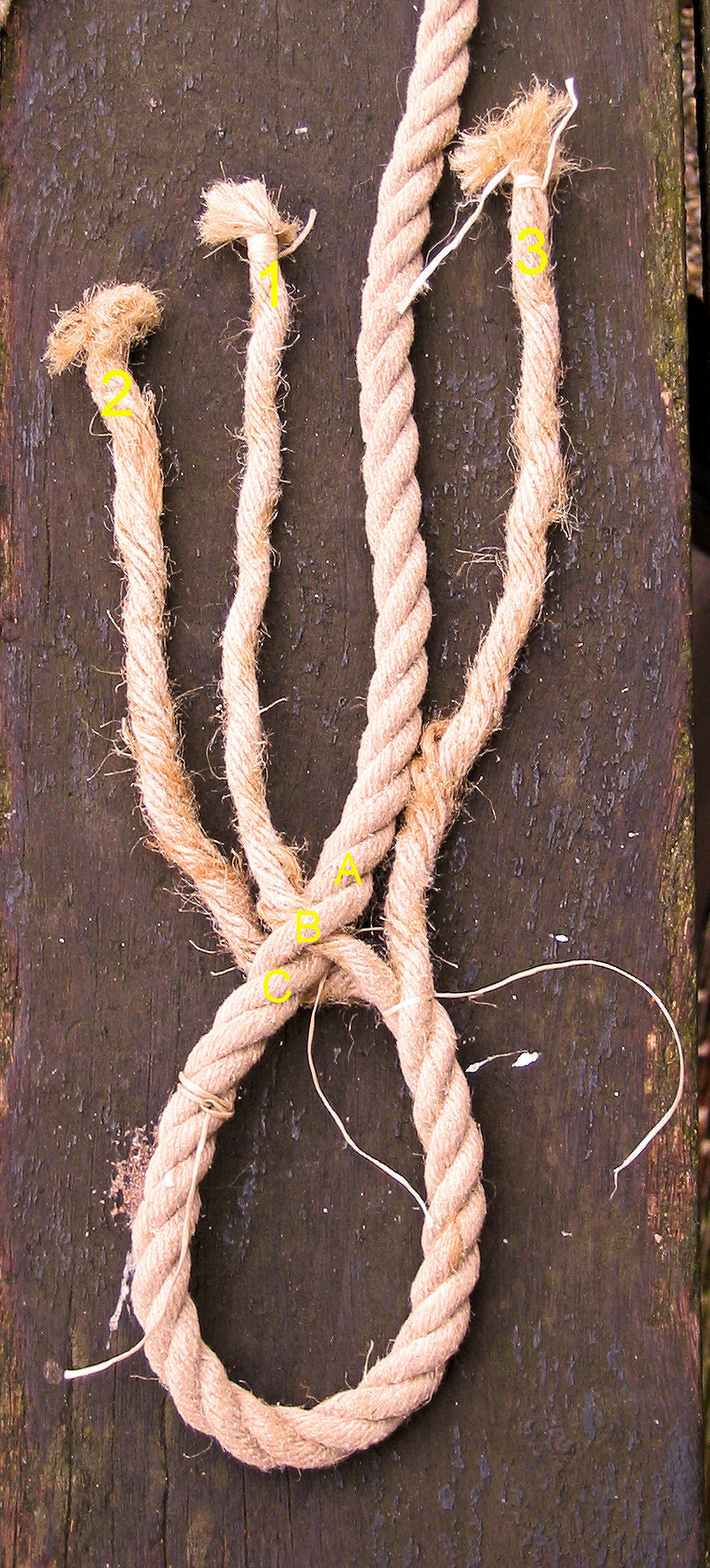

Photo credits: Finished eye splice in hollow-braid rope by Rasbak, via Wikimedia Commons (CC BY-SA 3.0). Rope splicing tools by SplicingSam, via Wikimedia Commons (CC BY-SA 4.0). Eye splice in wire rope via Wikimedia Commons (CC BY-SA 3.0). Rope eye splice in progress by Rasbak, via Wikimedia Commons (CC BY-SA 3.0). Advanced eye splice stage by Rasbak, via Wikimedia Commons (CC BY-SA 3.0).
